37m XXT Boom Pump

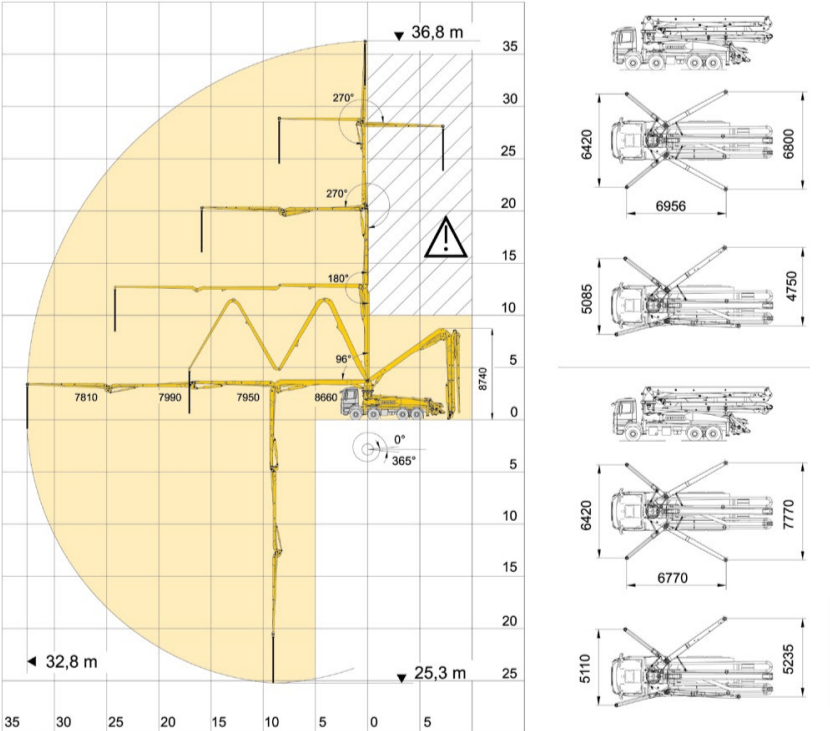

The 37m XXT Boom Pump boasts many of the same features of the 32m but with a larger boom size. The 4 section Z Fold boom gives you the extra vertical reach at 120.7 ft and horizontal reach of 107.6 ft. All this is attainted while still maintaining an almost identical outrigger spread in the front and only a few extra feet in the rear.
The swing out and extend front outrigger and swing out rear outrigger allow you to safely rig the machine in a variety of configurations depending on the working area of the boom. While its always best have all outriggers %100 deployed we understand with the limited space on New York City's job sites that sometimes short-rigging may be necessary.

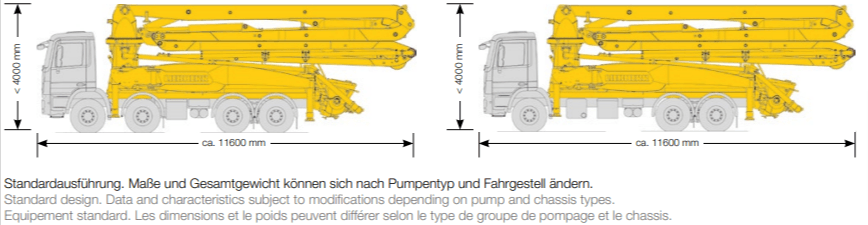

Compare Technical Data of our Liebherr Boom Pumps to see which pump works for You!
| 32m XXT Boom Pump | 37m XXT Boom Pump | 42m XXT Boom Pump | |
|---|---|---|---|
| Vertical Reach | 104 ft | 120.7 ft | 135.2 ft |
| Horizontal Reach | 90.9 ft | 107.6 ft | 122 ft |
| Unfolding Height | 19.9 ft | 28.67 ft | 28.21 ft |
| Outrigger Spread (Front) | 21.06 ft | 21.06 ft | 25.6 ft |
| Outrigger Spread (Back) | 22.3 ft | 25.5 ft | 25.6 ft |
| Short Rig Spread (Front) | 16.6 ft | 16.7 ft | 19.5 ft |
| Short Rig Spread (Back) | 15.5ft | 17.1 ft | 17.2 ft |
