20m Z-Fold Boom Pump

20m Z-Fold Boom Pump

The 20m Z-Fold Boom pump has to be one of our most popular boom pumps in New York City. It may seem small but the unbeatable compact outrigger design and 60 ft boom you can almost set this pump up anywhere. From busy city streets, to compact jobsites with very little room, you are able to squeeze this pump in and eliminate the need to manually set up your concrete placement system.

Download Spec Sheet

20 m pumping

Photo By: John Doe
Button

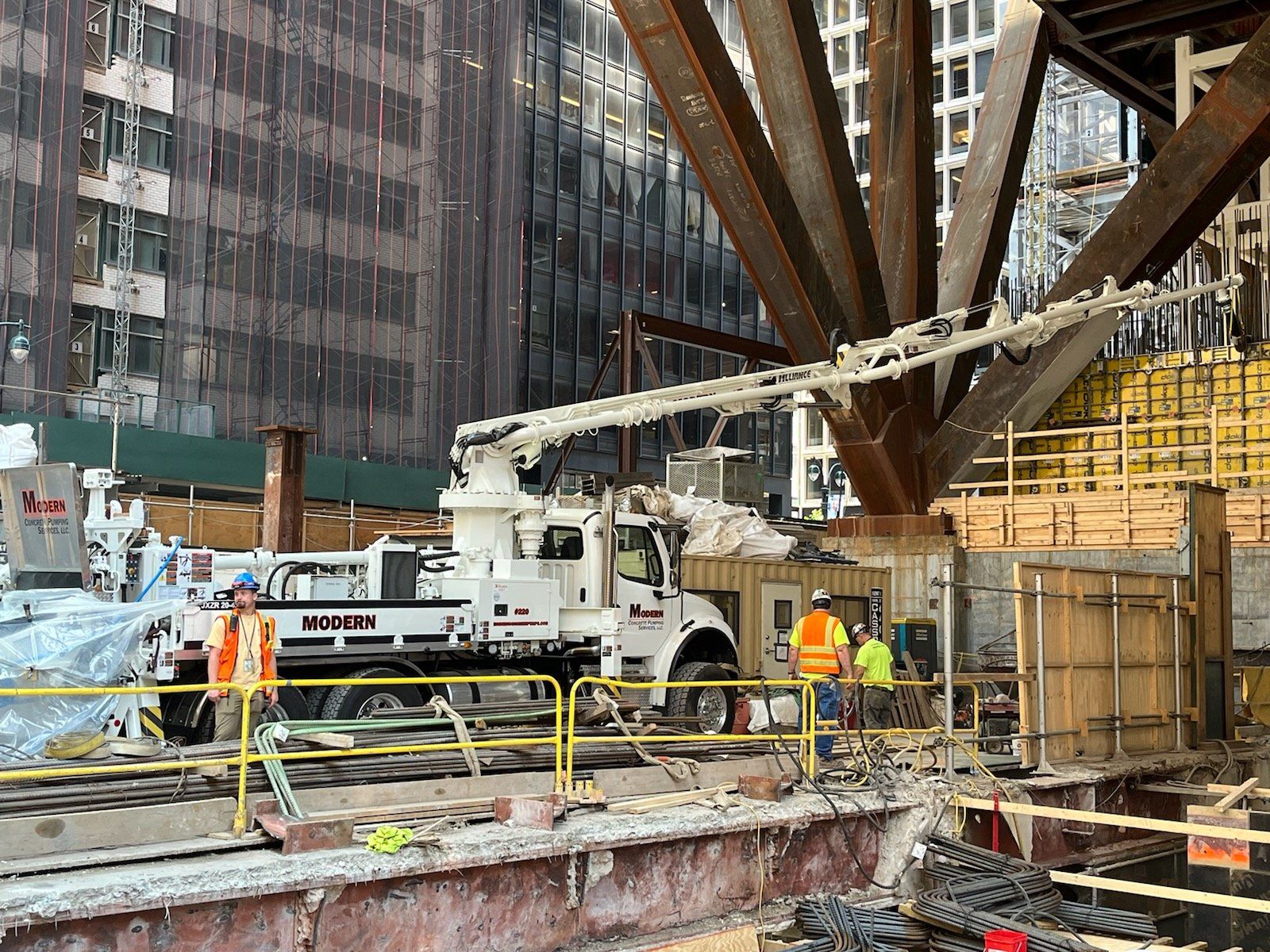

20 m pumping

Photo By: John Doe
Button

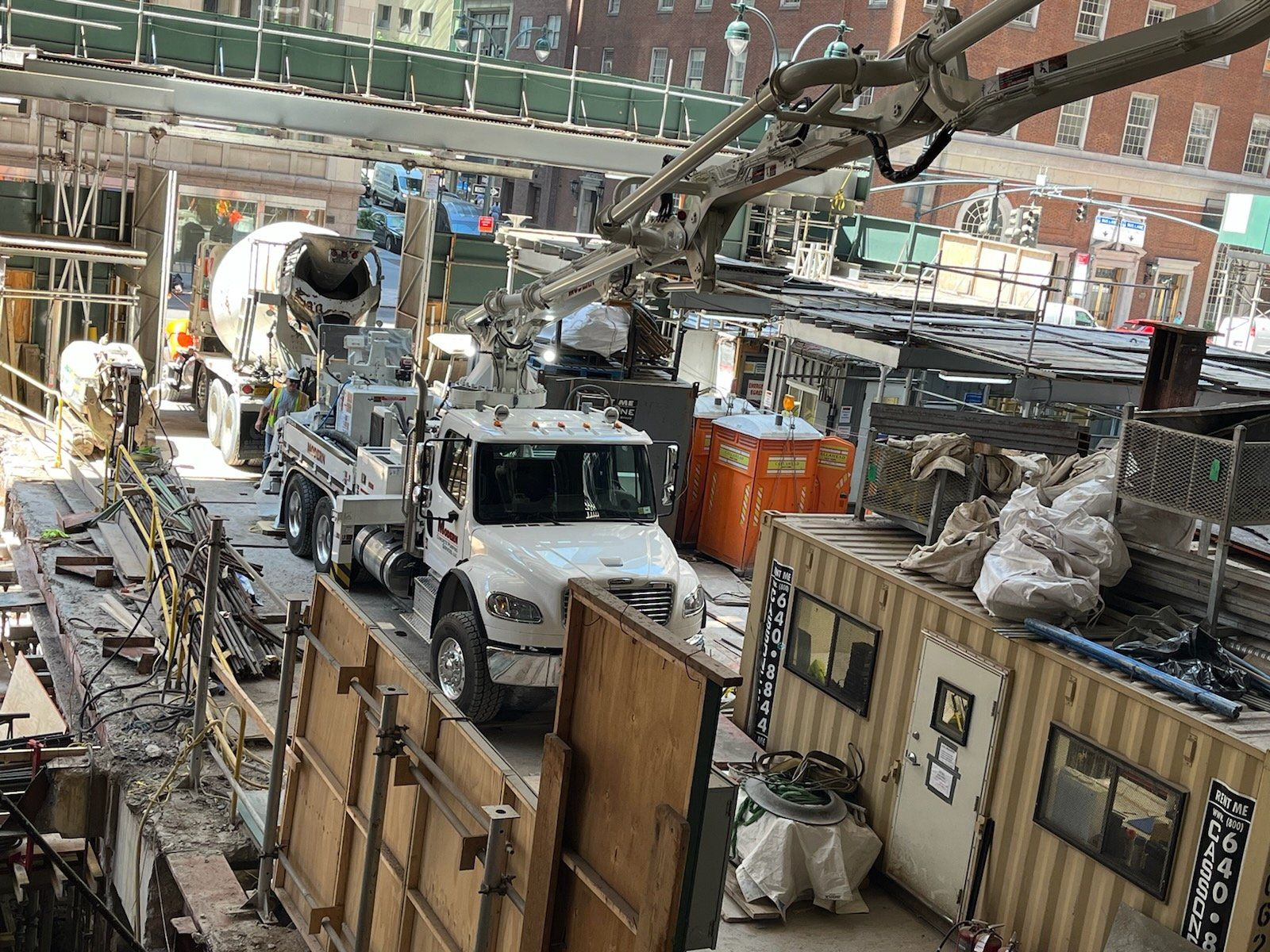

20 m boom

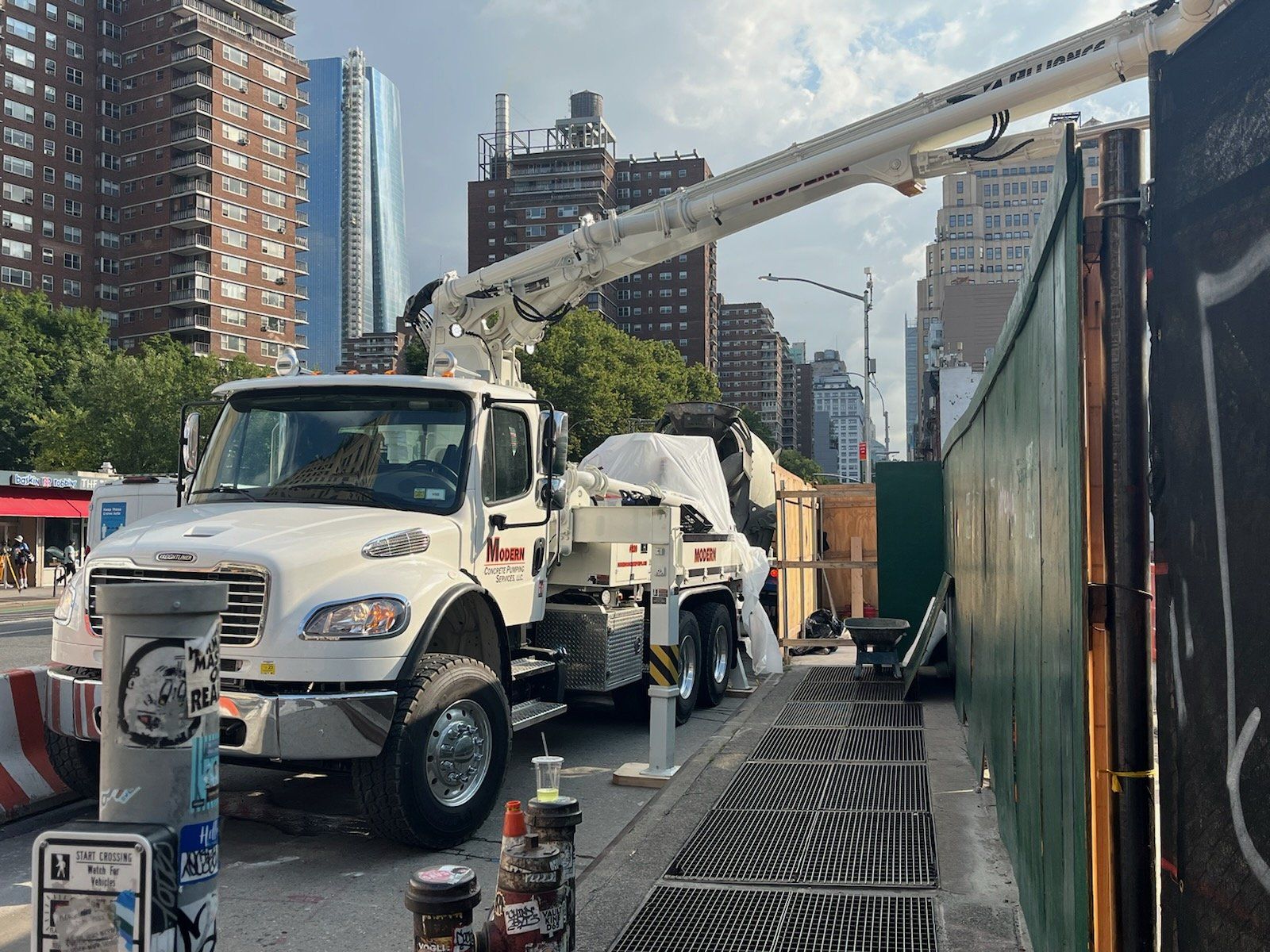

20 m pumping

Photo By: John Doe
Button

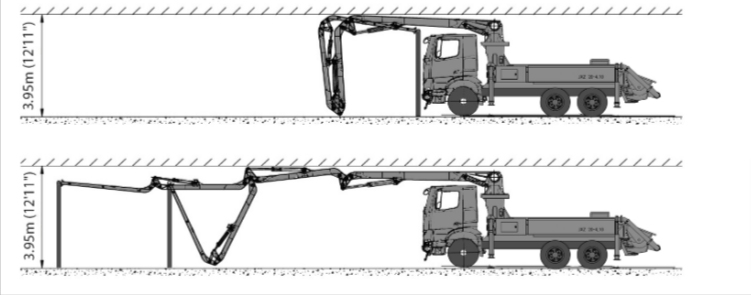

20 m black n white

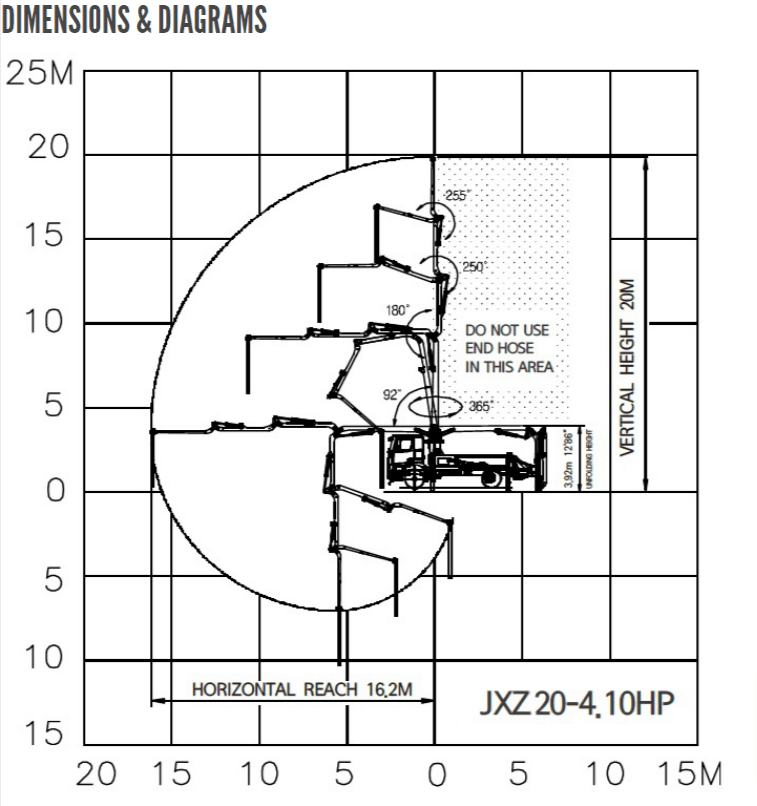

  • Vertical Reach20.0m (65'7")
  • Horizontal Reach16.2m (53'2")
  • Unfolding Height3.98m (12'11")
  • 1st Section Length5.5m (18')
  • 2nd Section Length3.52m (11'6")
  • 3rd Section Length3.54m (11'7")
  • 4th Section Length3.64m(11'11")

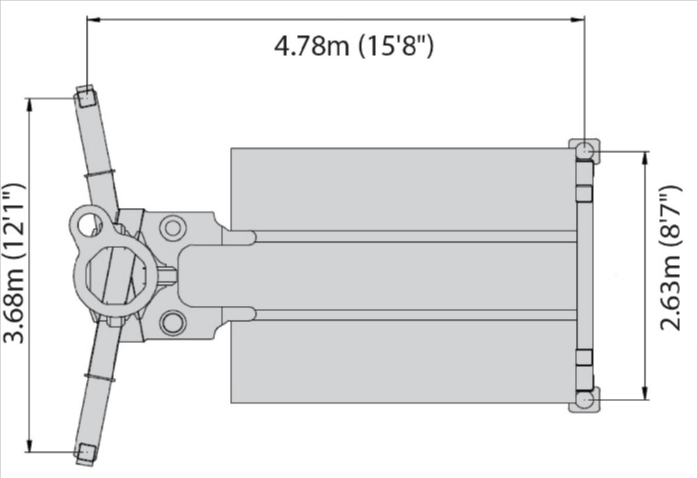

  • Front Spread3.68m (12'1")
  • Rear Spread2.63m (8'7")

BOOM PUMPS

  • 20M Z Fold

    Write your caption here
    LEARN MORE

  • 32M XXT

    Write your caption here
    LEARN MORE

  • 37M XXT

    Write your caption here
    LEARN MORE

  • 42M XXT

    Write your caption here
    LEARN MORE
20m Z Fold
32 m Boom pump

32 XXT

 With a vertical reach of 104' and an unfolding height of 19'6'' this pump will work even in tight spots. With a 21' front/ 22' rear outrigger spread you will be surprised just where this pump can fit


LEARN MORE
37 boom pump

37M XXT

 Our most popular pump boasts a 120' maximum vertical reach while maintaining a compact design. The 37 XXT outrigger system shows its versatility with the larger 4 section z fold boom configuration.


LEARN MORE
42 boom pump

42M XXT

 This 42 XXT brings size with out the weight. It maintains an operating weigh under 32t while providing a 5 section multifold boom for reach and maneuverability. Achieve 135' vertical reach with ease.


LEARN MORE
