42m XXT Boom Pump
42m XXT Boom Pump

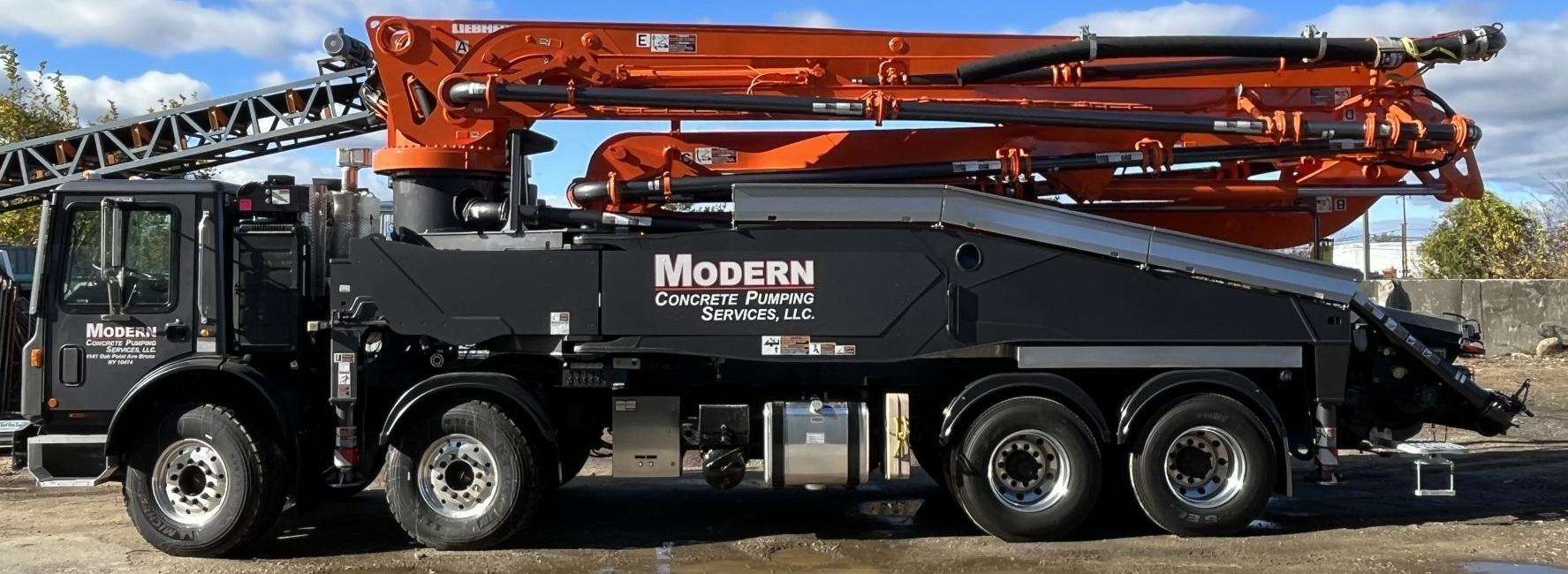

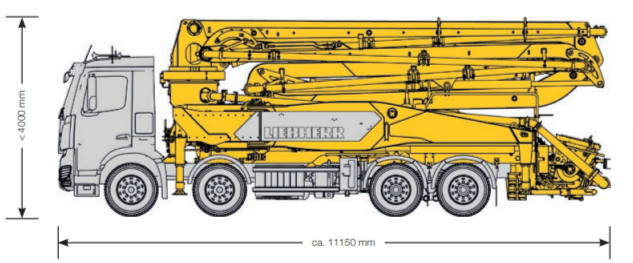

The 42m XXT Boom Pump brings you the size without the weight. It utilizes a larger version of the XXT outrigger design while still allowing the same level of flexibility. Reaching 135.2 ft vertically and 122 ft horizontally the 42 m gives you increased reach with a versatile 5 part multi-fold boom design.
The swing out and extend front outrigger and swing out rear outrigger allow you to safely rig the machine in a variety of configurations depending on the working area of the boom. While its always best have all outriggers %100 deployed we understand with the limited space on New York City's job sites that sometimes short-rigging may be necessary.
Compare Technical Data of our Liebherr Boom Pumps to see which pump works for You!
| 32m XXT Boom Pump | 37m XXT Boom Pump | 42m XXT Boom Pump | |
|---|---|---|---|
| Vertical Reach | 104 ft | 120.7 ft | 135.2 ft |
| Horizontal Reach | 90.9 ft | 107.6 ft | 122 ft |
| Unfolding Height | 19.9 ft | 28.67 ft | 28.21 ft |
| Outrigger Spread (Front) | 21.06 ft | 21.06 ft | 25.6 ft |
| Outrigger Spread (Back) | 22.3 ft | 25.5 ft | 25.6 ft |
| Short Rig Spread (Front) | 16.6 ft | 16.7 ft | 19.5 ft |
| Short Rig Spread (Back) | 15.5ft | 17.1 ft | 17.2 ft |
